Google bidding integration guide

This guide instructs you step-by-step on how to set Google as a bidder network on Unity LevelPlay Mediation.

For the Google bidder, the auto-setup tool is available to use once you complete step 1 below. The auto-setup tool will create an app and bidder placement and retrieve placement details from AdMob—so you don’t need to switch between the LevelPlay and AdMob platforms. Alternatively, you can complete the whole setup manually.

Step 1. Create an AdMob Account

1. To access Google’s ad inventory through Unity LevelPlay Mediation, you need to create an account with AdMob.
2. It’s recommended to adjust the time zone of your AdMob account to UTC to align with the Unity LevelPlay platform. This will ensure accurate reporting. Learn more.

Step 2. Create an application and ad unit in AdMob

Next, you must add your app to your AdMob account.

Add Your App

• Log into your AdMob account. On your dashboard, click Apps then Add app.

• A modal will appear where you can either search for your app, add your app manually or simply select an existing app to monetize.


  Note: You’ll need a unique AdMob application per platform (iOS + Android), just like your ironSource account.
• Select interstitial, rewarded video, or banners as your ad unit format and enter the relevant details.

• Interstitial
  • Ad unit name: Name the ad unit intuitively so it will be easy to recognize as the ad unit you’ll be serving
  • Partner bidding: Check the box to indicate that you are using bidding on another mediation platform

• Rewarded Video
  • Ad unit name: Name the ad unit intuitively so it will be easy to recognize as the ad unit you’ll be serving
  • Partner bidding: Check the box to indicate that you are using bidding on another mediation platform
•  Banners
  • Ad unit name: Name the ad unit intuitively so it will be easy to recognize as the ad unit you’ll be serving
  • Partner bidding: Check the box to indicate that you are using bidding on another mediation platform

Step 3. Activate Google in your LevelPlay network setup module

There are two ways that you can get Meta Audience Network setup on LevelPlay:

• Auto-setup – Login with your Google account to automatically create new application and bidding placements and pull all the necessary configurations settings from Google AdMob platform
• Manual – Go between the LevelPlay and Google AdMob platforms to retrieve and enter the necessary information.

Auto-setup

• Log into your LevelPlay account and go to the LevelPlay side nav bar ➣ Setup ➣ Networks
• Select Google AdMob from the list of available ad networks

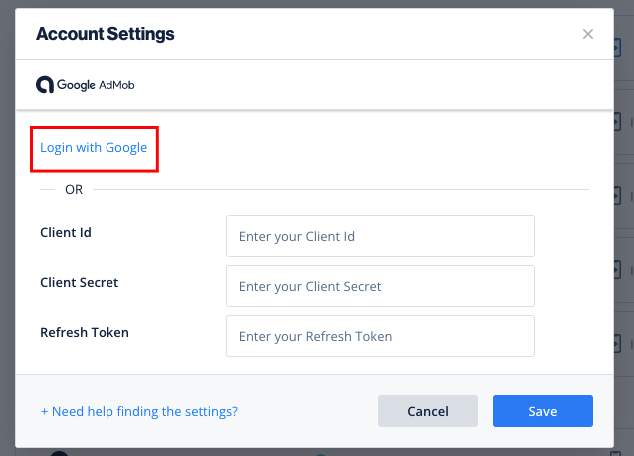

• Click Login with Google and log in with your approved Google account
• If you’re already logged in, click reset login (A new log-in is required)

• Once you’re logged in, toggle on Google auto-setup bidder

• Now go to the Instances page, and select the app where you’d like to run interstitial, rewarded, or banner ads from Google.

• Click the Add Bidder button to automatically create new apps and bidding placements on the AdMob platform, and import the Ad Unit ID. If there is an App ID already attached to the app, you will be able to use the auto-setup tool if there is at least 1 placement without the Ad unit ID parameter value. In this case, a new bidding placement will be created.

• Click Save to approve and accept all configurations. If you close the module without saving, the assets will be created on the AdMob platform without importing the data onto the LevelPlay platform.

Manual Setup

• Log into your LevelPlay account and go to the LevelPlay side nav bar ➣ Setup ➣ Networks
• Select Google AdMob from the list of available ad networks

There are a few pieces of data from your AdMob account that need to be inserted into your LevelPlay Network Setup Module in order for AdMob to work correctly with the ironSource SDK:

Once you obtain this information, you must configure AdMob’s Parameters into LevelPlay.

• • 1. App ID
       To retrieve your App ID, go to ‘Apps’ tab on the left side bar on Admob’s platform and click on ‘App Settings’ .  You will then see the application’s settings, as well as the App ID.

    2. Ad Unit ID
       To retrieve your Ad Unit ID, go to ‘Apps’ tab on the left side bar on Admob’s platform and click on ‘Ad Units’. You will then see the application’s ad units, as well as the Ad Unit ID.

    3. Client ID  and Client Secret
       1. To retrieve your Client ID & Client Secret, go to Google’s API Manager.
       2. Click on the API Project drop-down at the upper-left of the page, select ‘Create a project’ or select the project you already created for this app:
          In the case you are creating a new project for this purpose,  provide a Project name, Billing account, and Location in the dialog box that appears and click Create:

       3. In the left sidebar, select Credentials, then select the OAuth consent screen tab.Then, provide a Product Name and click Save:
       4. In the left sidebar, select Dashboard, and go to Enable APIs and services:

       5. Next, enable the AdMob API:

       6. Select the Credentials tab in the left sidebar. Click the Create Credentials drop-down and select OAuth client ID
       7. Select Web application, and provide a name for your app. In the fields below, you must enter https://developers.google.com/oauthplayground for at least one Authorized redirect URI. For example:
          • Authorized JavaScript origins: https://YOUR_NAMESPACE (Optional)
          • Authorized redirect URI: https://developers.google.com/oauthplayground
       8. Click Create, and you will be presented with your Client ID and Client Secret:

    4. Refresh Token

       1. To retrieve your Refresh Token, go to the OAuth 2.0 Playground.
       2. Click the settings icon in the upper right corner. Uncheck the box labeled Force approval prompt and check Use your own OAuth credentials. Input your Client ID and Client Secret

       3. Next, in Step 1: Select & Authorize APIS, enter ‘https://www.googleapis.com/auth/admob.report’ and click Authorize APIs:

       4. Grant your project access to your AdMob data
       5. You should then receive the Authorization Code from Step 1 and will be able to click the Exchange authorization code for tokens button. Then you will get a Refresh token as well as an Access Token:

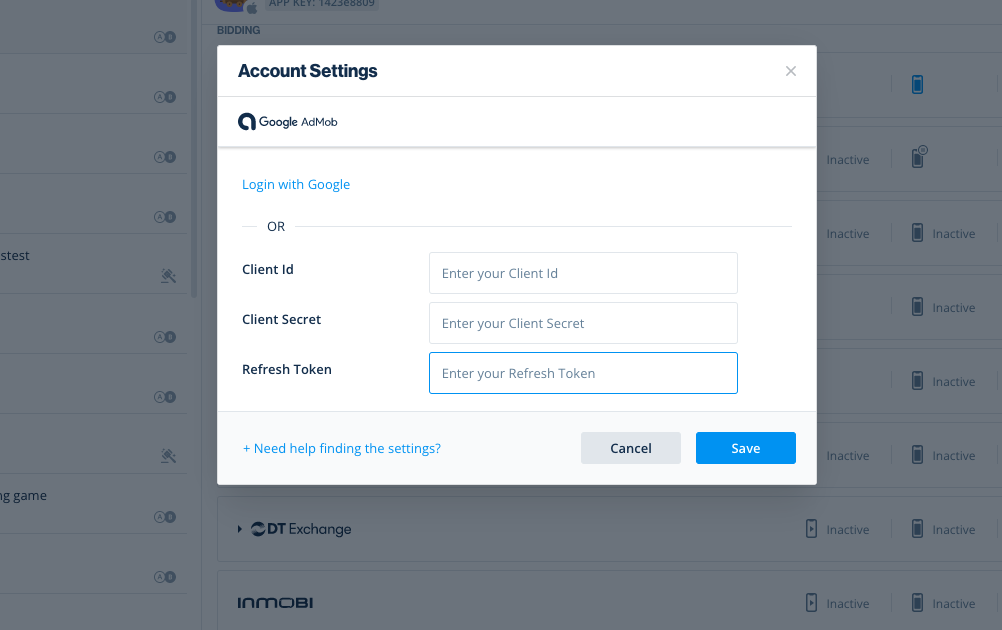

• Once you have all of these parameters, enter them into the Google AdMob account settings on LevelPlay

• Next, go to the Instances page. Select the app at the top of the page for which you’d like to run Unity LevelPlay’s Mediation with Google bidding.

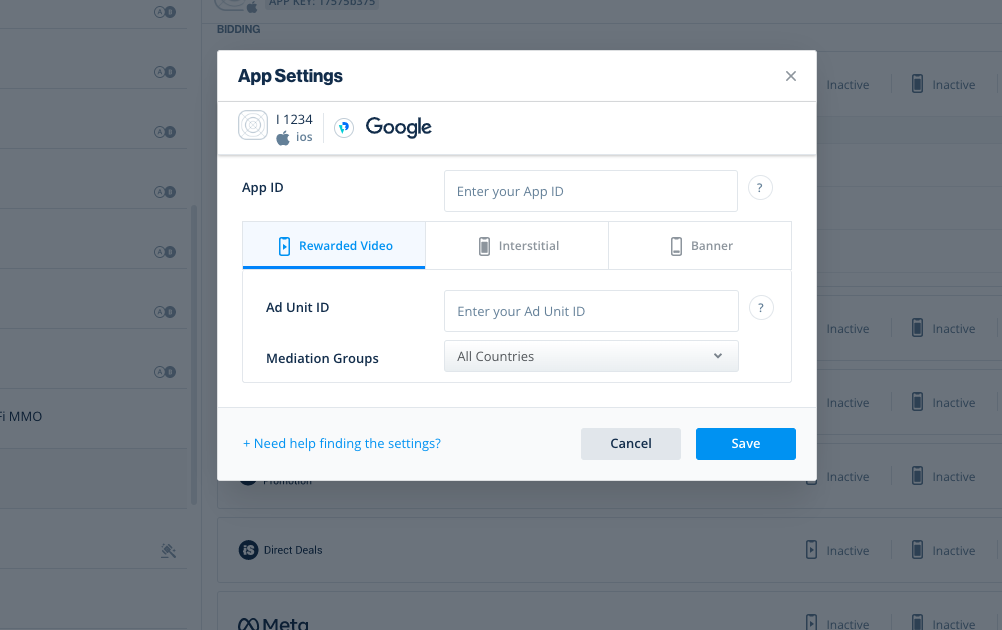

• Select Google from the setup list of Ad Networks and click on the tool Define icon. Then insert the App ID and Ad Unit ID  under Interstitial, Rewarded Video or Banner Settings.


Step 4. Add the Admob adapter to your build

<key>GADApplicationIdentifier</key>
<string>[APP_ID]</string>

iOS

ironSource SDK supports both Cocoapods and Manual download mechanisms.

Cocoapods

To integrate the AdMob SDK with Cocoapods, enter the following line in your podfile and you’re good to go!

pod 'IronSourceAdMobAdapter','4.3.58.0'

Manual Download

1. Download the AdMob Adapter
   Add the AdMob Adapter and SDK to your build. You can find the latest AdMob Adapter and SDK here.
   As the AdMob Adapter does not contain the AdMob SDK. You need to add the AdMob SDK to your project as well.
2. Add the AdMob XCframeworks to your Project
   After you download the Adapter and SDK, drop the Adapter and SDK XCframework files into your Xcode Project.
3. Open Target ➣ Build Settings ➣ Architectures and confirm that your Xcode Project uses Base SDK version 8.0 or greater and that it does not use armv6 architecture.
4. Linker Flags:
   Add two separate linker flags to Target ➣ Build Settings ➣ Linking ➣ Other Linker Flags:
   –ObjC

Step 5. Update Info.plist

As of V7.42.0 (Adapter version 4.3.3 onwards), AdMob’s SDK requires publishers to add their AdMob App ID to the app’s plist as described here.
Alternatively, you can make this change programmatically

<key>GADApplicationIdentifier</key>
<string>[APP_ID]</string>

Replace the “GADApplicationIdentifier” value with the APP ID value you retrieve in step 3.
Not doing so results in crashes originated with AdMob’s SDK. For more information please refer to AdMob’s guide.

Step 6. Additional Steps

Child-directed setting – COPPA

Unity LevelPlay mediation lets publishers communicate AdMob Child-directed settings directly to the AdMob network.
This feature is enabled using ironSource SDK 6.14.0+, AdMob iOS Adapter 4.3.11+.

Use the following syntax, to set AdMob tagForChildDirectedTreatment with the parameter YES:

 [IronSource setMetaDataWithKey:@"AdMob_TFCD" value:@"true"];

Use the following syntax, to set AdMob tagForChildDirectedTreatment with the parameter NO:

[IronSource setMetaDataWithKey:@"AdMob_TFCD" value:@"false"];

To learn more about Child-directed settings Under AdMob network visit here.
here.

Users under the age of consent – GDPR

Unity LevelPlay mediation lets publishers communicate with AdMob network, a Tag For Users under the Age of Consent in Europe (TFUA) request.
This feature is enabled using ironSource SDK 6.14.0+, AdMob iOS Adapter 4.3.11+.

Use the following syntax, to set tagForUnderAgeOfConsent with YES:

[IronSource setMetaDataWithKey:@"AdMob_TFUA" value:@"true"];

Use the following syntax, to set tagForUnderAgeOfConsent with NO:

[IronSource setMetaDataWithKey:@"AdMob_TFUA" value:@"false"];

To learn more about Child-directed settings Under AdMob network visit here.
here.

Ad Content filtering

Unity LevelPlay mediation lets publishers communicate with AdMob network,  maximum ad content rating for all ad requests.
This feature is enabled using ironSource SDK 7.12.0+, AdMob iOS Adapter 4.3.28+.

Use the following syntax, to set maxAdContentRating:

[IronSource setMetaDataWithKey:@"AdMob_MaxContentRating" value:@"MAX_AD_CONTENT_RATING_G"];

The possible values for this property are based on digital content label classification as defined by Google:

• MAX_AD_CONTENT_RATING_G
• MAX_AD_CONTENT_RATING_PG
• MAX_AD_CONTENT_RATING_T
• MAX_AD_CONTENT_RATING_MA

To learn more about Ad Content Rating property Under AdMob network visit here.

Content URL mapping support

Unity LevelPlay supports Google’s content mapping for apps, and allows you to share URLs using “Google_Content_Mapping” settings. This feature is enabled using ironSource SDK 7.7.0+, AdMob Adapter 4.3.51+. Learn more about Google’s content mapping here.

To pass a single-content URL, use the following syntax:

[IronSource setMetaDataWithKey:@"Google_Content_Mapping" value:@"https://www.example.com"];

To support multiple urls, use the same key and share up to 4 URLs:

[IronSource setMetaDataWithKey:@"Google_Content_Mapping" value:@[@"https://www.example1.com",@"https://www.example2.com"];

Step 7. Enable Native ads (closed beta)

Resources bundle

The resources bundle contains the Native Banner Custom views for the different banner sizes. Follow these steps to add the resources bundle to your project:

1. Click on your project target
2. Go to the build phases tab
3. Open the Copy Bundle Resources and click on the + icon
4. Choose the ISAdMobResources.bundle and click on Add

Done!
You are now all set to deliver Admob Ads within your application!
